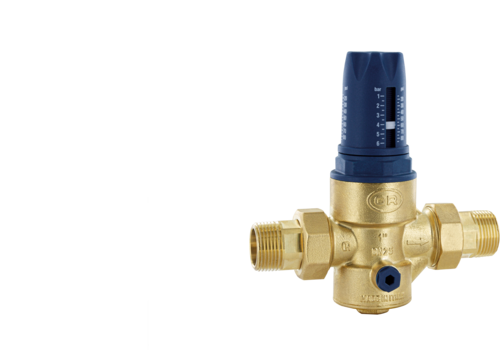

Diaphragm Pressure Reducing Valves

Name: Diaphragm Pressure Reducing Valves
Brand: CHINTAN ENTERPRISE
Price: 100-300000 INR
Availability: InStock

Price 100-300000 INR/ Unit

Get a Price/Quote

Diaphragm Pressure Reducing Valves Specification

Control System
Spring Loaded / Pressure Sensing

Connection Type
Flanged / Threaded / Socket Weld

Valve Type
Diaphragm Pressure Reducing Valve

Valve Size
DN15 to DN200

Material
Cast Iron / Ductile Iron / Stainless Steel / PVC

Structure
Diaphragm Type

Application
Water, Gas, Steam, Chemical Industries, Pipeline Systems

Sealing
EPDM / PTFE / NBR Diaphragm

Voltage
220V / 110V / 24V (for actuators)

Type
Pressure Reducing

Power
Manual / Pneumatic / Electric

Pressure
Max 16 bar

Media
Water, Gas, Oil, Air, Steam, Chemicals

Port Size
15 mm to 200 mm

Disc
Stainless Steel

Pin
Standard DIN / Customized

Diaphragm Pressure Reducing Valves Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
1 Week

About Diaphragm Pressure Reducing Valves

Diaphragm Pressure Reducing Valves

0204 - Diaphragm Pressure Reducing Valves with Compensation and Stainless Steel Seat

HYDRAULIC FEATURES

Model suitable to reduce very high pressure (max 25/40 bar) and where a much reduced pressure is needed steadily even if the inlet pressure can change.

TECHNICAL FEATURES

Max inlet working pressure:	(Mod. 204) 40 bar
	(Mod. 214) 25 bar
	min. 1 max 7 bar

Setting % tolerance of the setting in varying the inlet pressure : 10% Max temperature (water): 80C Preset : 3 bar Threading for Waterworks: UNI ISO 228/1 Manometer Joint: ISO 7/1 Tests following EN 1567

CONSTRUCTION

Sizes ½" - 2" in brass EN 12165 - CW617N Sizes 2½" - 2" in bronze EN 1982 - CC491K NBR diaphragm with textile inserts Seat washer and washers in NBR rubber Stainless steel seat AISI 303

CONNECTIONS: FEMALE/FEMALE
