Pressure Reducing Valves

Pressure Reducing Valves
Pressure Reducing Valves
Product Code : 18
Brand Name : PISTON PRESSURE REDU
Product Description

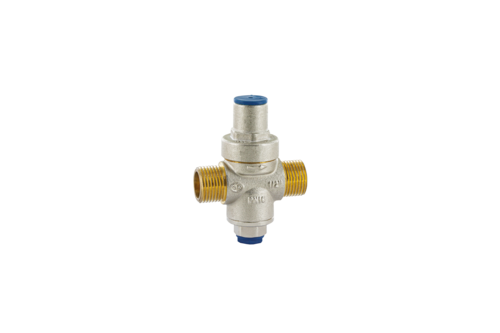

Piston Pressure Reducing Valve

Owing to the market experience and insight of our hardworking team, we are able to supply and export Pressure Reducing Valves. These products are used reducing the pressure in different fluid operations. Known for their high strength, these products have the ability to bear varied types of high pressure conditions. The perfect shape and non-corrosive nature of these products are ensured by electro-deposited coating nickel. Our clients can avail from us Pressure Reducing Valves in diverse specifications in accordance to their demands.

Other details:

The high accuracy in machining internal process allows high flow and low charge losses even if there is low inlet medium pressure. The electrodeposited coating nickel gives a high corrosion resistance and a pleasant shape, so this PRV is especially recommended for domestic use in flats or single house.

TECHNICAL FEATURES

  • Max inlet working pressure: 16 bar

  • Setting: min. 1 max 5, 5 bar

  • % tolerance of the setting

  • in varying the max inlet pressure: ± 10%

  • Max temperature (water): 80o

  • Preset: 3 bar

  • Threading for waterworks: UNI ISO 228/1

  • Manometer joint: ISO 7/1 - Rp 1/4"

  • Tests following EN 1567

CONSTRUCTION

  • Body - Cap in brass UNI EN 12165 - CW617N nickel plated

  • Other components in brass UNI EN 12164 - CW614N

  • Washer in NBR rubber
